Radial Funnel Chart

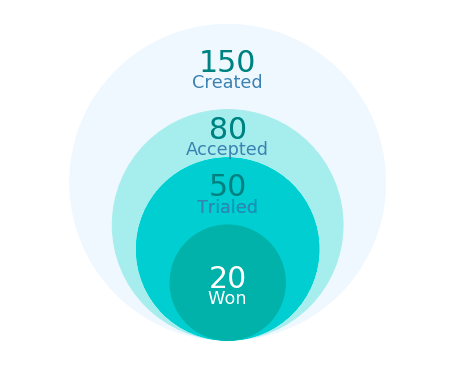

Here is an alternate visualization of a funnel chart - instead of using bars, it depicts the different steps as concentric circles.

How to use: define an array in the extract() function of the values you'd like to use. If you are pulling data from a data frame, you will need to use something like the pandas iloc function to extract the desired values.

import pandas as pd
import matplotlib.pyplot as plt
import numpy as np
import matplotlib.patches as mpatches
from matplotlib.collections import PatchCollection

# extract important variables from the data frame
def extract():
#   GET DATA FROM DATA FRAME
#   if df.size == 0:
#     return [0, 0, 0 , 0, 0]
#   else:
#     opps_created = df.iloc[0]['opps_created']
#     opps_accepted = df.iloc[0]['opps_accepted']
#     opps_trialed = df.iloc[0]['opps_trialed']
#     opps_won = df.iloc[0]['opps_won']

# EXAMPLE DATA
    opps_created = 150
    opps_accepted = 80
    opps_trialed = 50
    opps_won = 20
    return [opps_created, opps_accepted, opps_trialed, opps_won]


####################
# create text chart
####################
def kpi_text(ax, text = '', text_color = 'black', x_position = 0, y_position = 0.5, font_size = 13):
    return ax.text(x = x_position,
                   y = y_position,
                   s = text,
                   color = text_color,
                   family = 'sans-serif',
                   fontsize = font_size,
                   horizontalalignment = 'center',
                   verticalalignment = 'center')


# create the plot
def kpi_chart(df):

  # set up the figure
  fig, ax = plt.subplots(figsize = (5.5,5.5))

  fig.subplots_adjust(left=0, bottom=0, right=1, top=1, wspace=0, hspace=0)
  ax.axis('off')

  # styling (colors and font sizes)
  mediumgray = '#999292'
  lightgray = '#c4c4c4'
  purples = plt.get_cmap('Purples_r')

  fontsize_text = 30
  offset_x = 0.1
  offset_y = 0.13

  # parse the data
  funnel_df = extract()
#     use the following if you are using the extract_df function to parse the desired values
#   funnel_df = extract(df)
  [opps_created, opps_accepted, opps_trialed, opps_won] = funnel_df

  # map the data
  def get_data_domain(data):
    return {'min': min(data), 'max': max(data)}

  def data_mapper(data = [None], outputsize = 0.5):
    #assumes zero-max domain normalization
    # 0.48 is the max radius with a bit of padding
    domain = get_data_domain(data)
    mapped_area =  [1.0 * d/domain['max'] * outputsize  for d in data]
    mapped_radius = [np.sqrt(d/np.pi) for d in mapped_area]
    return mapped_radius

  # mapping the data
  mapped_df = data_mapper(funnel_df)
  colors = ['aliceblue', 'paleturquoise', 'darkturquoise', 'lightseagreen']

  # the circles
  for i in range(len(mapped_df)):
      ax.add_patch(
        mpatches.Circle( (0.5 + offset_x, mapped_df[i] + offset_y),
                        mapped_df[i],
                        color = colors[i]))

  kpi_text(ax,
       text = funnel_df[-1],
       text_color = 'white',
       font_size = fontsize_text,
       x_position = 0.5 + offset_x,
       y_position = mapped_df[-1] + 0.01 + offset_y)


  for i in range(len(mapped_df) - 2, -1, -1):
      kpi_text(ax,
               text = funnel_df[i],
               text_color = 'teal',
               font_size = fontsize_text,
               x_position = 0.5 + offset_x,
               y_position = mapped_df[i + 1] + mapped_df[i] + 0.01 + + offset_y)

  cols = ['Created', 'Accepted', 'Trialed', 'Won']

  for i in range(len(cols) - 2, -1, -1):
      kpi_text(ax,
               text = cols[i],
               text_color = 'steelblue',
               font_size = fontsize_text/1.7,
               x_position = 0.5 + offset_x,
               y_position =  mapped_df[i] + mapped_df[i+1] - 0.05 + 0.01 + offset_y)
  kpi_text(ax,
       text = cols[-1],
       text_color = 'white',
       font_size = fontsize_text/1.7,
       x_position = 0.5 + offset_x,
       y_position = mapped_df[-1] - 0.05 + 0.01 + offset_y)


  return plt

periscope.output(kpi_chart())
1reply Oldest first
  • Oldest first
  • Newest first
  • Active threads
  • Popular
  • What a wonderful visualization, thanks for the post!
    I have a third column with the percentage calculation over the first value so, how can I add that percentage? Greetings!
