Boxplot — Plot.ly

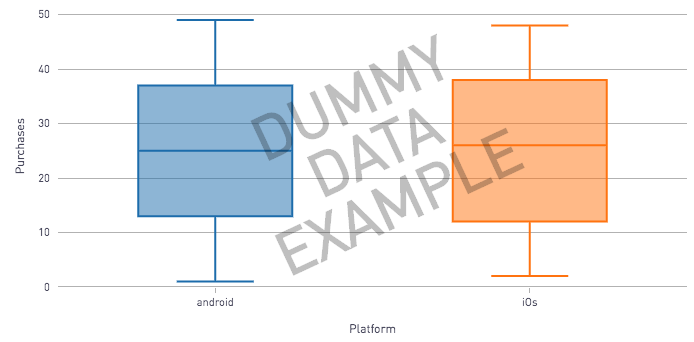

Boxplots are a widely recognized chart type and are excellent for quickly and succinctly visualizing distributions. The following Python script, leveraging the plot.ly library with Periscope's Python/R Integration, generates the image above and can quickly plug into your SQL output.

To see your data in the boxplot instead of dummy data, ensure that your SQL output is in 2 columns as outlined blow:

  1.  s_<name>: the value to group by. if you're grouping by `platform`, call it s_platform
  2. y_<name>: the Y value for the box plot. if you're plotting `revenue`, call it y_revenue (optionally, apply dollar formatting by naming the columns y$_<name>)

Python 3.6 Code

# PERISCOPE BOX PLOT TEMPLATE
# SQL output should have 2 columns:
#    1) s_<name>: the value to group by. if you're grouping by `platform`, call it s_platform
#    2) y_<name>: the Y value for the box plot. if you're plotting `revenue`, call it y_revenue
#      optionally apply dollar formatting by naming the columns y$_<name>

import pandas as pd
import plotly.plotly as py
import plotly.graph_objs as go
import datetime
from datetime import timedelta
import numpy as np

# Dummy data to use in case SQL output is in the incorrect format
community_post = ''
dummy_df = pd.DataFrame()
dummy_df['y_purchases'] = np.random.randint(1,50, 10000)
dummy_df['s_platform'] = dummy_df.apply(lambda x: 'android' if x['y_purchases'] % 3 == 1 else 'iOs', axis=1)

# HELPER FUNCTIONS
def column_name(column):
  return column.split('_', 1)[1].replace('_',' ').title()

def format(column):
  if column.startswith('Y$'):
    return '$s'
  elif column.startswith('Y%'):
    return '.0%'
  else:
    return 's'

def get_columns(df):
  y_column = [c for c in df.columns if c.startswith('Y')][0]
  series_columns = [c for c in df.columns if c.startswith('S')]
  unique_series = unique_vals(df, series_columns) if len(series_columns) > 0 else None
  return y_column, series_columns, unique_series

def unique_vals(df, column):
  return df.groupby(column).size().reset_index()[column]

def style_link(text, link, **settings):
  style = ';'.join([f'{key.replace("_","-")}:{settings[key]}' for key in settings])
  return f'<a href="{link}" style="{style}">{text}</a>'

# MAIN FUNCTION
def plot(df, annotation=None):
  df.columns = [c.upper() for c in df.columns]
  y_column, series_columns, unique_series = get_columns(df)
  has_series = unique_series is not None
  # showlegend = has_series

  traces = []
  for idx, series in unique_series.iterrows():
    query = ' & '.join(f'{col} == "{series[{col}].iloc[0]}"' for col in series_columns)
    df_series = df.query(query)
    traces.append(
      go.Box(
        y=df_series[y_column],
        boxpoints = False,
        name=f'{", ".join([series[{col}].iloc[0] for col in series_columns])}'
      )
    )

  data = traces

  layout = {
    'margin': {
      'l': 50,
      'r': 0,
      'b': 50,
      't': 0
    },
    'yaxis': {
      'title': column_name(y_column),
      'tickformat': format(y_column),
      'hoverformat': format(y_column)
    },
    'xaxis': {
      'title': f'{", ".join([column_name(col) for col in series_columns])}'
    },
    'showlegend': False
  }
  if annotation is not None:
    layout['annotations'] = [annotation]
  fig = dict(data=data, layout=layout)
  periscope.plotly(fig)

try:
  plot(df)

# Plot dummy data in case the SQL Output is in the incorrect format
except Exception as e:
    print(e)
    annotation = {
    'x': 0.5,
    'y': 0.5,
    'ax': 0,
    'ay': 0,
    'xref': 'paper',
    'yref': 'paper',
    'text': style_link('DUMMY<br><br><br><br>DATA<br><br><br><br>EXAMPLE', community_post, font_size='60px', font_weight='bold', color='rgba(0, 0, 0, .25)'),
    'showarrow': False,
    'textangle': -25
  }
    plot(dummy_df, annotation=annotation)
