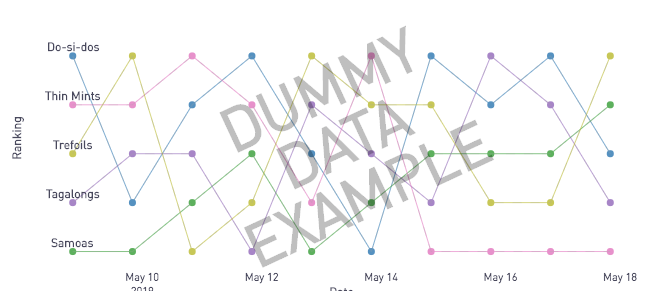

A stack rank chart shows the relative rankings of different objects over time. These are useful for determining on whether rankings are fluctuating highly or staying fairly consistent.

The SQL output must have the 3 following columns:

  1. date: the date of the ranking
  2. entity: the name of the thing being ranked
  3. rank: the entity's rank at that point in time

Python 3.6 Code

# PERISCOPE STACKRANK TEMPLATE
# SQL output should have 3 columns:
#    1) date: the date of the ranking
#    2) entity: the name of the thing being ranked
#         3) rank: the entity's rank at that point in time
import pandas as pd
import plotly.plotly as py
import plotly.graph_objs as go
from random import shuffle
from datetime import datetime, timedelta

# Generating dummy data in case SQL output is in the incorrect format
community_post = ''
current_date = datetime.now()

cookies = ['Thin Mints', 'Samoas' ,'Trefoils', 'Do-si-dos', 'Tagalongs']
vals = []

for i in range(0,10):
  date = current_date - timedelta(days=i)
  shuffle(cookies)
  for k in range(0, len(cookies)):
    vals.append({
      'date': date,
      'entity': cookies[k],
      'rank': k + 1
    })
dummy_df = pd.DataFrame(vals)

# HELPER FUNCTION
def style_link(text, link, **settings):
  style = ';'.join([f'{key.replace("_","-")}:{settings[key]}' for key in settings])
  return f'<a href="{link}" style="{style}">{text}</a>'

# MAIN FUNCTION
def plot(df, annotation_msg=None):
  df.columns = [c.lower() for c in df.columns]

  # get distinct entities and dates
  entities = df.groupby(['entity']).size().reset_index()['entity']
  dates = df.groupby(['date']).size().reset_index()['date']

  traces = []
  annotations = []
  for entity in entities:
    entity_data = df.query('entity == @entity')

    # plot rank of entity on each date
    for date in dates:
      if date > entity_data['date'].min() and entity_data.query('date == @date').size == 0:
        new_row = pd.DataFrame({
          'date': [date],
          'entity': [entity],
          'rank': [None]
        })
        entity_data = entity_data.append(pd.DataFrame(new_row))
    entity_data.sort_values(by='date',inplace=True)
    trace = go.Scatter(
      x=entity_data['date'],
      y=entity_data['rank'],
      name=entity,
      text=entity_data['rank'].astype(str) + ' ' + entity,
      line={
        'width': 0.75
      },
      mode='markers+lines',
      hoverinfo='text',
      connectgaps=False,
      opacity=0.75,
      marker={
        'size': 7
      }
    )
    traces.append(trace)

    # plot a gray line to indicate drop offs from the ranking
    trace2 = go.Scatter(
      x=entity_data['date'],
      y=entity_data['rank'],
      mode='lines',
      line={
        'dash': 'dash',
        'color': '#afafaf',
        'width': 0.5
      },
      hoverinfo='none',
      connectgaps=True,
      opacity=0.5
    )
    traces.append(trace2)
    annotation = {
      'x': entity_data['date'].iloc[0],
      'y': entity_data['rank'].iloc[0] - 0.2,
      'ax': 0,
      'ay': 0,
      'text': f'<b style="font-size:12px">{entity}</b>'
    }
    annotations.append(annotation)

  if annotation_msg is not None:
    annotations.append(annotation_msg)

  layout = {
    'showlegend': False,
    'margin':{
      'l': 30,
      'r': 0,
      't': 20,
      'b': 30
    },
    'yaxis':{
      'showline': False,
      'ticks': '',
      'showticklabels': False,
      'showgrid': False,
      'zeroline': False,
      'range': [df['rank'].max(), df['rank'].min()],
      'fixedrange': True,
      'tickmode': 'linear',
      'title': '<b>Ranking</b>'
    },
    'xaxis':{
      'ticks': '',
      'fixedrange': True,
      'title': '<b>Date</b>'
    },
    'annotations': annotations
  }

  fig = {
    'data': traces,
    'layout': layout

  }

  periscope.plotly(fig)

try:
  plot(df)
except Exception as e:
  print(e)
  annotation = {
    'x': 0.5,
    'y': 0.5,
    'ax': 0,
    'ay': 0,
    'xref': 'paper',
    'yref': 'paper',
    'text': style_link('DUMMY<br><br><br><br>DATA<br><br><br><br>EXAMPLE', community_post, font_size='60px', font_weight='bold', color='rgba(0, 0, 0, .25)'),
    'showarrow': False,
    'textangle': -25
  }
  plot(dummy_df, annotation_msg=annotation)
